9.10 Provenance [Deprecated]

This Dashboard shows the provenance of the data in the different data domains.

CSS

To hide the dashboard header insert the following css code to the CSS field on the edit page:

.dashboard > div:not(.dashboard-content) {  /* dashboard header */
  display: none;
}

With this every time you want to edit the dashboard layout you have to either comment the CSS inserted or remove it so the “Edit Dashboard” button can show again.

Data Source Filter

Figure 9.8: Settings for creating the Data Source filter chart

For the filter to work the name of the fields to filter should match in all tables used on the charts of this dashboard.

SQL query

No SQL query, use the sql table data_source of the achilles database.

Chart settings

• Data Tab
  • Datasource & Chart Type
    • Visualization Type: Filter Box
  • Time
    • Time range: No filter
  • Filters Configuration
    • Filters:
      • name
    • Date Filter: off
    • Instant Filtering: on

Condition & Drug & Procedure & Device & Measurement & Observation Types {#dataProvenanceCharts}

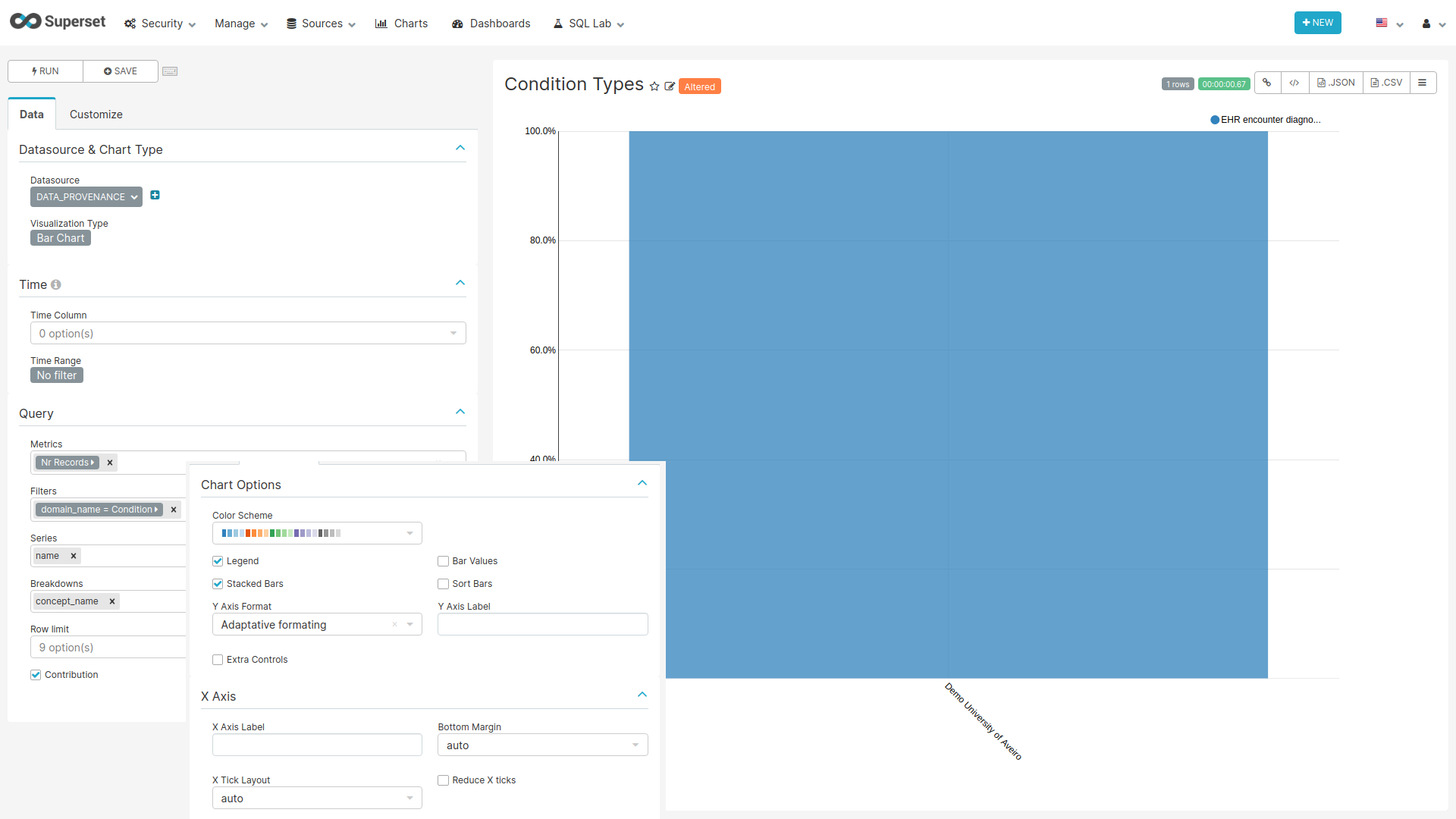

Figure 9.22: Settings for creating the Condition, Drug, Procedure, Device, Measurement and Observation charts

SQL query

All 6 charts use the same sql query.

SELECT source.name,
    source.acronym,
    CASE WHEN analysis_id = 405
      THEN 'Condition'
    WHEN analysis_id = 605
      THEN 'Procedure'
    WHEN analysis_id = 705
      THEN 'Drug'
    WHEN analysis_id = 805
      THEN 'Observation'
    WHEN analysis_id = 1805
      THEN 'Measurement'
    WHEN analysis_id = 2105
      THEN 'Device'
    ELSE 'Other' END AS domain_name,
    concept_name,
    SUM(count_value) AS num_records
FROM public.achilles_results AS achilles
INNER JOIN public.data_source AS source
  ON achilles.data_source_id=source.id
INNER JOIN public.concept AS c1
  ON CAST(stratum_2 AS BIGINT) = concept_id
WHERE analysis_id IN (405,605,705,805,1805,2105)
GROUP BY source.name, source.acronym, concept_name,
    CASE WHEN analysis_id = 405 THEN 'Condition'
    WHEN analysis_id = 605 THEN 'Procedure'
    WHEN analysis_id = 705 THEN 'Drug'
    WHEN analysis_id = 805 THEN 'Observation'
    WHEN analysis_id = 1805 THEN 'Measurement'
    WHEN analysis_id = 2105 THEN 'Device'
    ELSE 'Other' END

Chart settings

• Data Tab
  • Datasource & Chart Type
    • Visualization Type: Bar Chart
  • Time
    • Time range: No filter
  • Query
    • Metrics: SUM(num_records) with label Nr Records
    • Filters: domain_name=Condition or domain_name=Drug or domain_name=Procedure or domain_name=Device or domain_name=Measurement or domain_name=Observation
    • Series: name
    • Breakdowns: concept_name
    • Contribution: on
• Customize Tab
  • Chart Options
    • Stacked Bars: on
